MercuryOS Memory

In this article, we will learn how the BIOS organizes RAM internally and how to locate memory addresses of variables in our ASM program.

Before we begin, it is recommended that you read these previous articles:

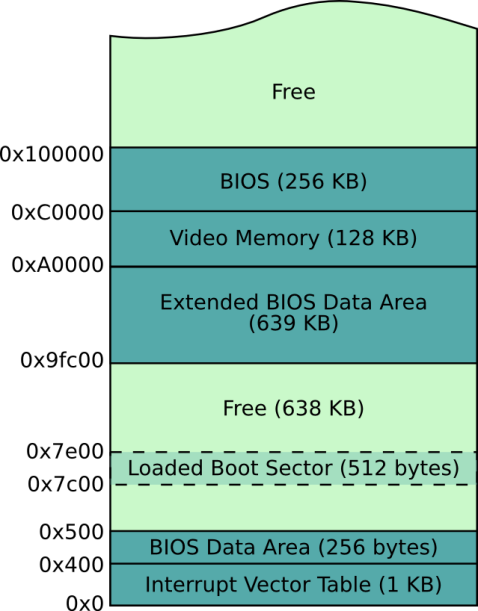

When the BIOS loads the boot sector, the RAM is arranged as follows.

As we can see, the memory address at which the boot sector begins is 0x7c00. If we define a variable in our code and later use it in some operation, we must find out its location by adding the relative address of the variable to the base address, that is, 0x7c00 + N.

This example continues from the previous one , but this time we print the value of the variable.

vi boot_sect_memory.asm

mov ah, 0x0e; tty mode

mov bx, the_secret; get relative address of the_secret
add bx, 0x7c00; absolute address = the_secret relative address + boot sector base address
mov al, [bx]; set al value to absolute address
int 0x10

jmp $ ; infinite loop

the_secret:
    db "X"

; zero padding and magic bios number
times 510-($-$$) db 0
dw 0xaa55

We generate the image:

nasm -f bin boot_sect_memory.asm -o boot_sect_memory.bin

We load it into qemu:

qemu-system-x86_64 boot_sect_memory.bin

SeaBIOS (version rel-1.12.1-0-ga5cab58e9a3f-prebuilt.qemu.org)
iPXE (http://ipxe.org) 00:03.0 C980 PCI2.10 PnP PMM+07F91410+07EF1410 C980

Booting from Hard Disk...
X

We can avoid having to calculate the absolute address if we directly indicate the base address to nasm:

vi boot_sect_memory2.asm

[org 0x7c00] ; tell the assembler that our base address is bootsector address
mov ah, 0x0e; tty mode

mov bx, the_secret;
mov al, [bx]
int 0x10

jmp $ ; infinite loop

the_secret:
    db "X"

; zero padding and magic bios number
times 510-($-$$) db 0
dw 0xaa55

We generate the image:

nasm -f bin boot_sect_memory2.asm -o boot_sect_memory2.bin

We load it into qemu:

qemu-system-x86_64 boot_sect_memory2.bin

SeaBIOS (version rel-1.12.1-0-ga5cab58e9a3f-prebuilt.qemu.org)
iPXE (http://ipxe.org) 00:03.0 C980 PCI2.10 PnP PMM+07F91410+07EF1410 C980

Booting from Hard Disk...
X
